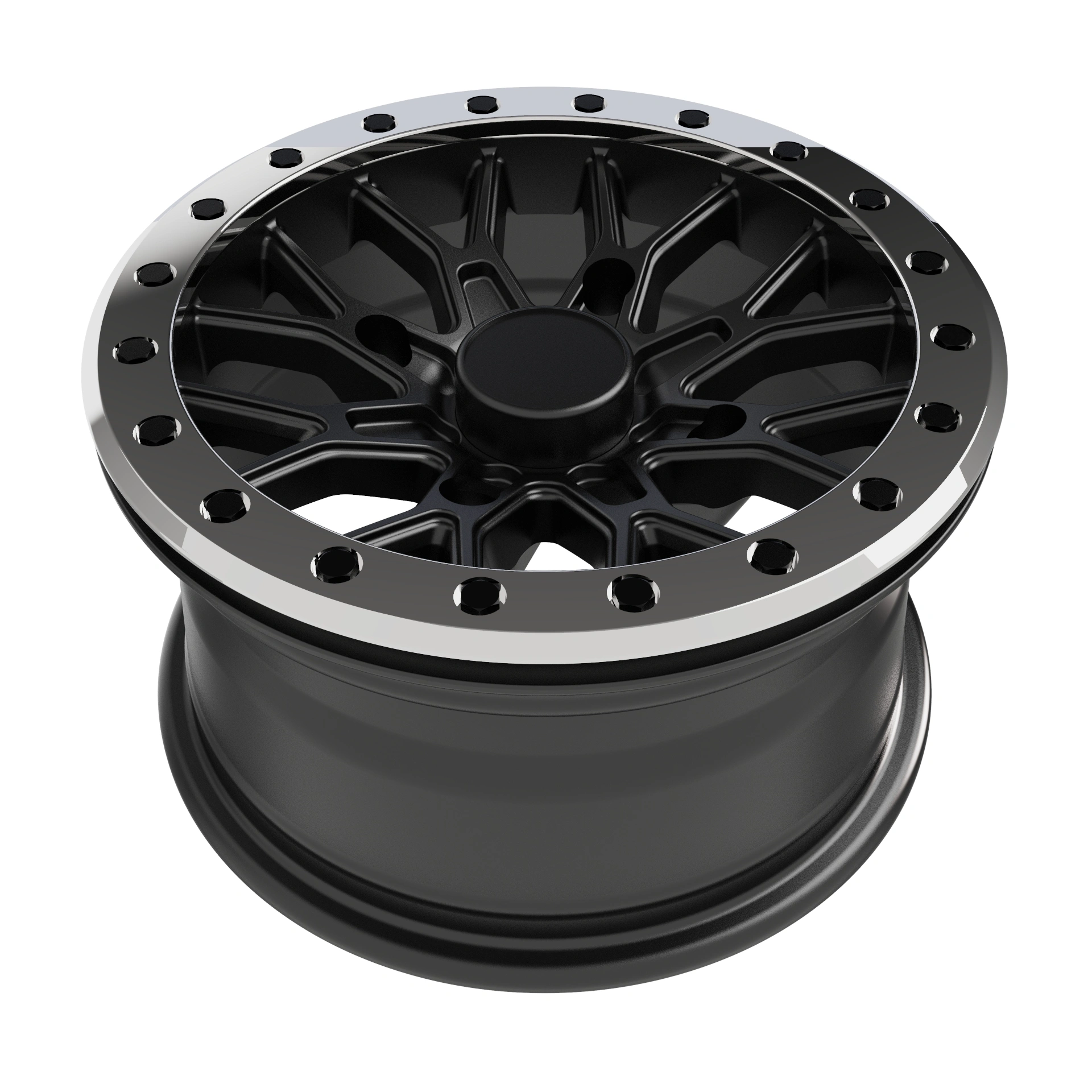

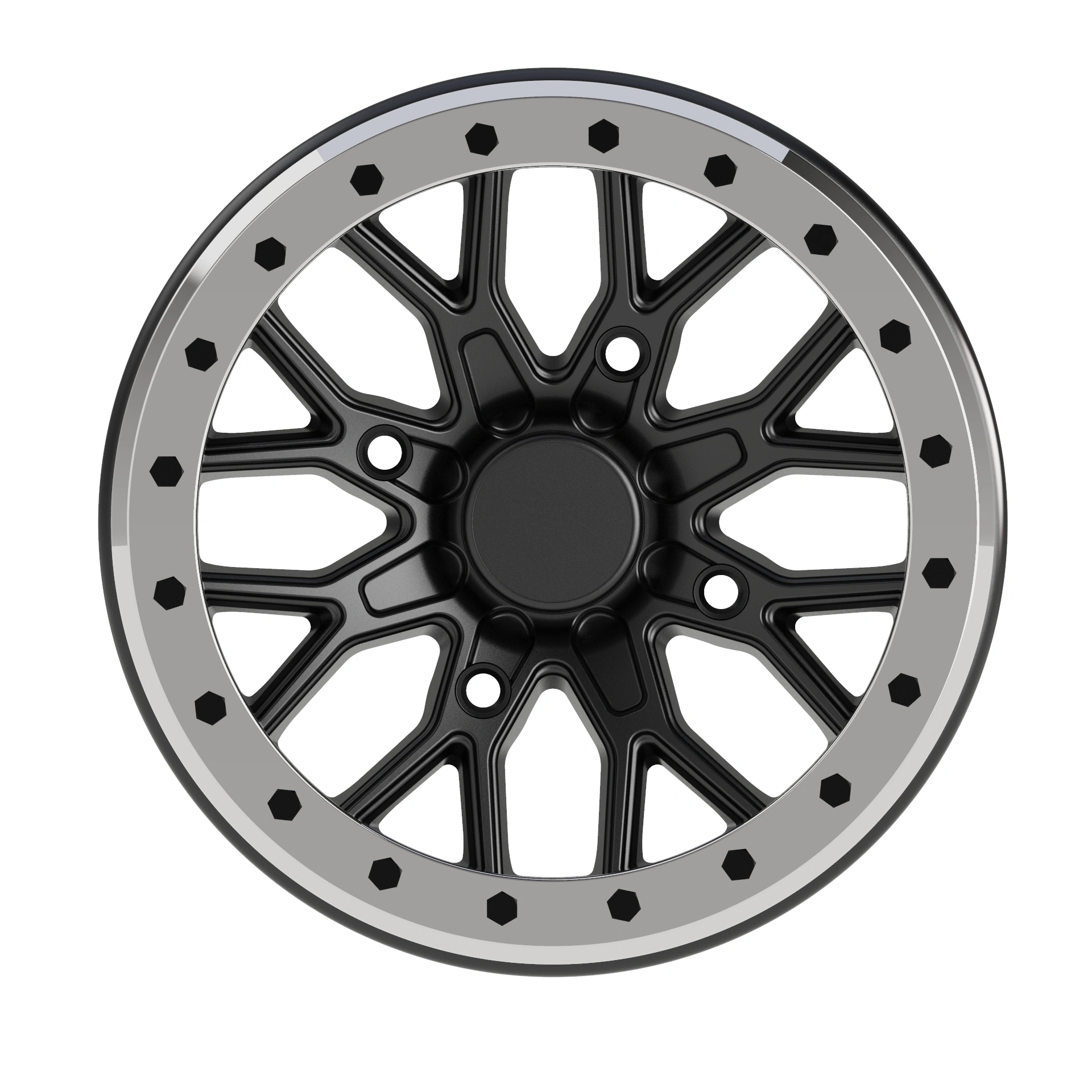

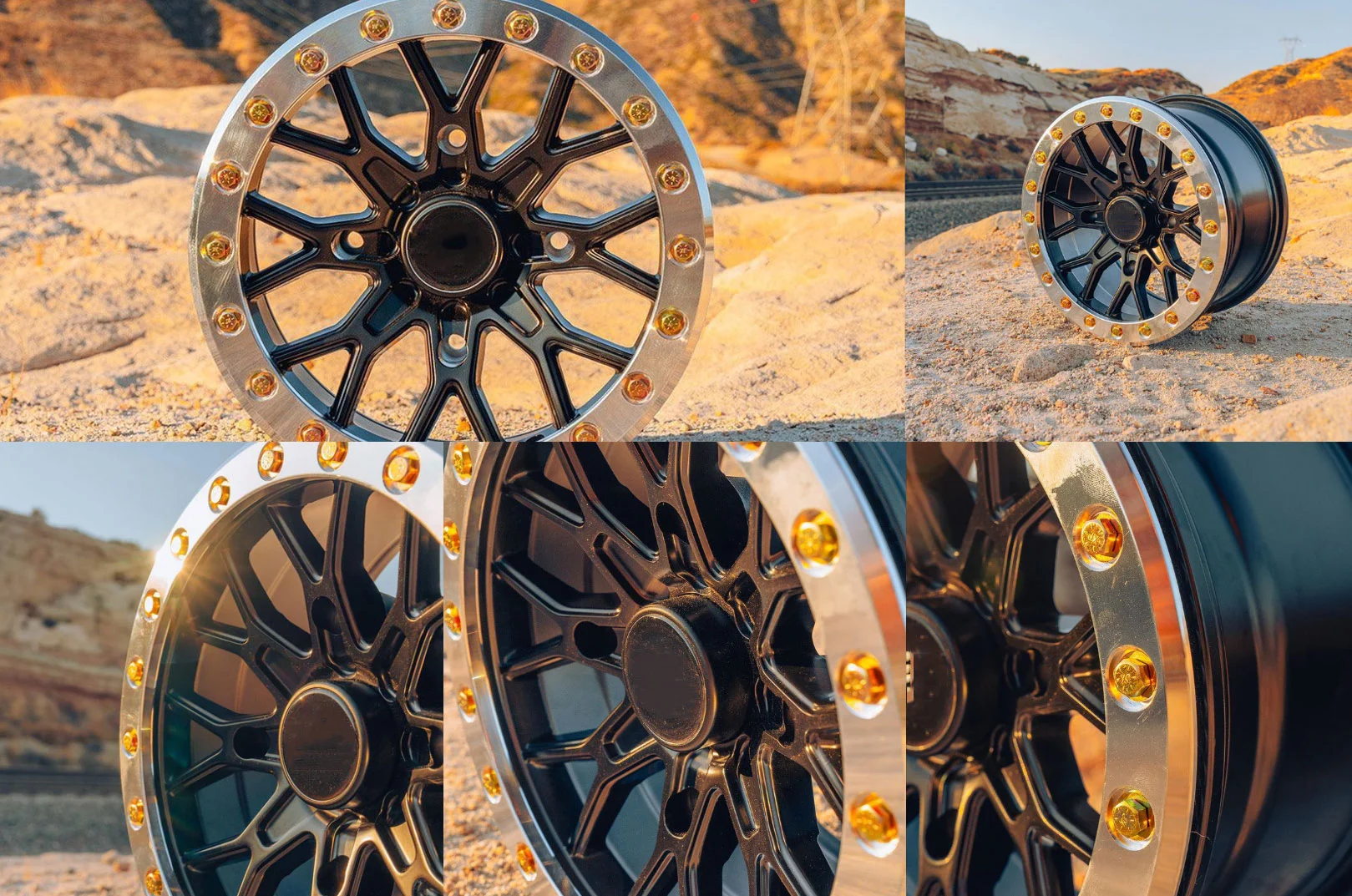

Name: 12X7 14X7 H/PCD 4X110 4x137 4x156 Cast Aluminum Alloy Beadlock ATV UTV Wheel Rims
SKU: 2LxRI92YP8Iuq1zGZqgZZg

12X7 14X7 H/PCD 4X110 4x137 4x156 Cast Aluminum Alloy Beadlock ATV UTV Wheel Rims

Product Information

Material:

Grade A356.2

use:

Original Replacement

New and old:

New

country of origin:

Zhejiang, China

Model number:

104BL

Brand:

WHEELMAN

shape:

Motorsport

Product Description

Specifications	Applications	Specifications	Applications
PCD 4x137 Size 14x7	Bombardier, Can-Am,	PCD 4x137 Size 15x7	Can-Am
PCD 4x156 Size 14x7	Polaris Arctic Cat	PCD 4x156 Size 15x7	Polaris

Designed for both on-road and off-road driving. For daily driving, mount the tire onto the traditional bead seat. For off-road driving, use the beadlock ring to secure the tire.

Popular equipment includes Bombardier, Can-Am and Polaris. Please refer to the fitting guide below to verify the fitment.

Note: OEM factory lug nuts may not be compatible. Please refer to the lug nut compatibility section below, or contact us with your wheel information for assistance.

Warning: Tires secured with beadlock rings are for off-road use only and may not be legal for highway use. Check your local laws.

Warning: Beadlock ring shims may be required for proper installation. Some tires have thicker beads that prevent the beadlock ring from clamping the tire properly onto the wheel. This could damage the beadlock ring/hardware and/or cause air leaks. Based on our experience, if your tire bead thickness exceeds 8mm (5/16"), beadlock ring shims may be required.

Available Specifications

Important Information

Existing lug nuts can be used if the lug seats match our wheels. Our wheels require conical or tapered (60-degree)seat lug nuts. Check your existing lug nuts to ensure compatibility. Your tire shop may carry the required lug nuts, or you can purchase a set below.

Warning: If the lug nuts do not match, your wheels will not be properly secured to the machine and may fall off while riding.

Lug Thread: Check the pitch on your ATV/UTV and select the specification that matches your machine.

If you intend to use OE/factory nuts or lug nuts other than those we recommend above, check the following information to verify lug nut compatibility.

1. Lug nuts must have a conical/tapered seat.
2. The lug nut and your lug socket must not be thicker/wider than 23mm (7/8"), otherwise they will not fit into the lug holes of our wheels.
